| Type | Single Ended Shear Beam |
| Ingress Protection | IP67 |
| Application | Industrial |
| Capacity | 100 Kg - 2.5 Ton |
| Brand | ADI ARTECH |
| Material | Alloy Steel |
| Model Number | 30310 |

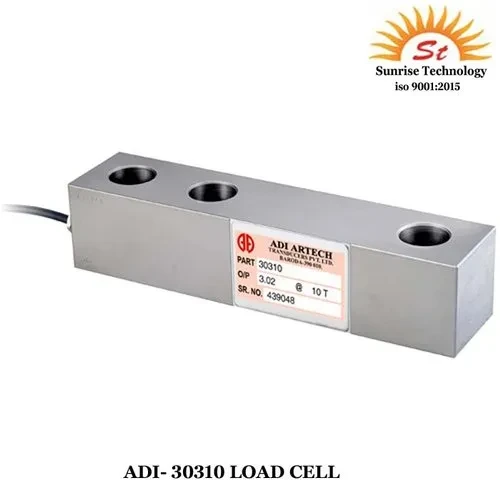

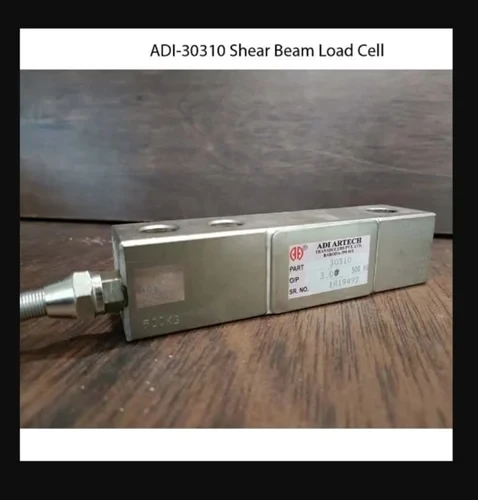

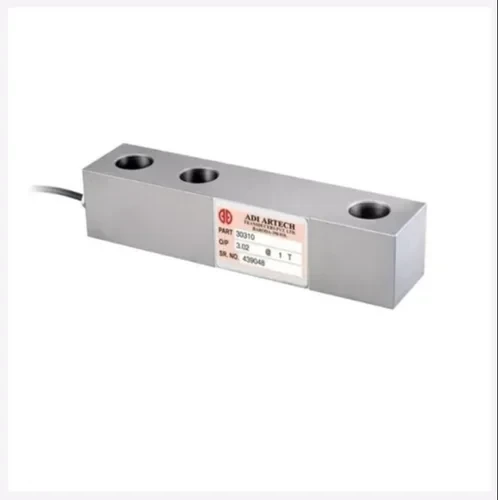

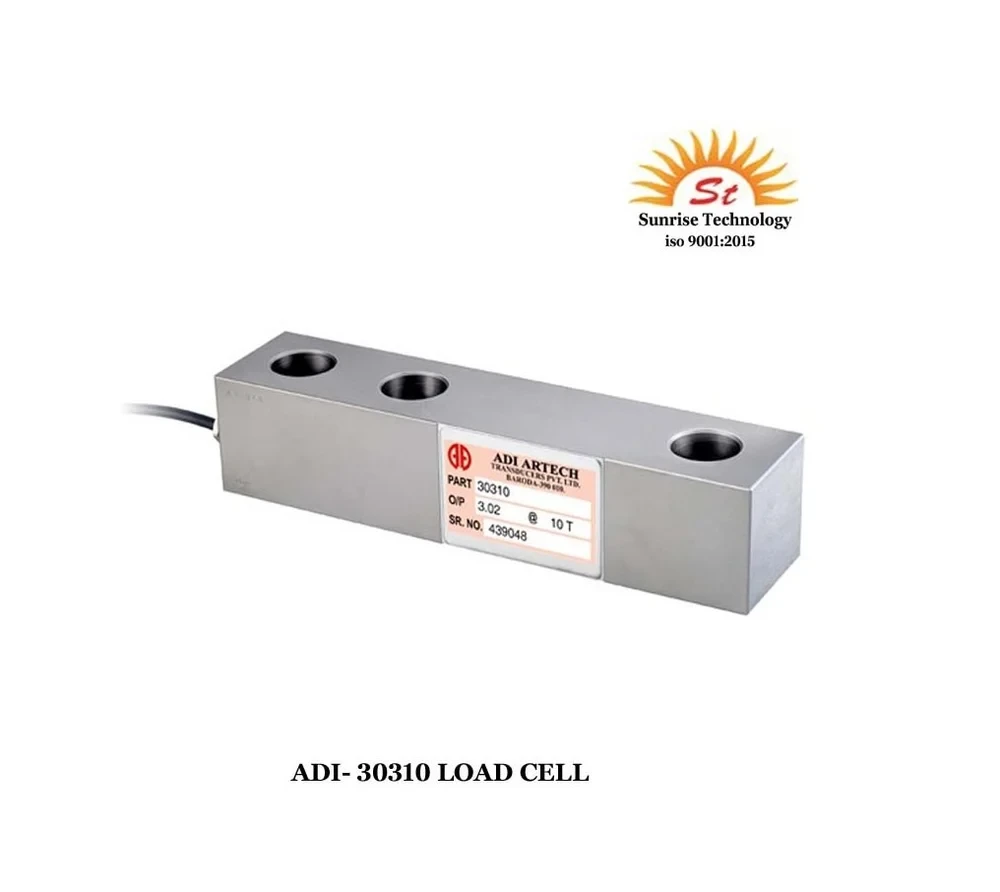

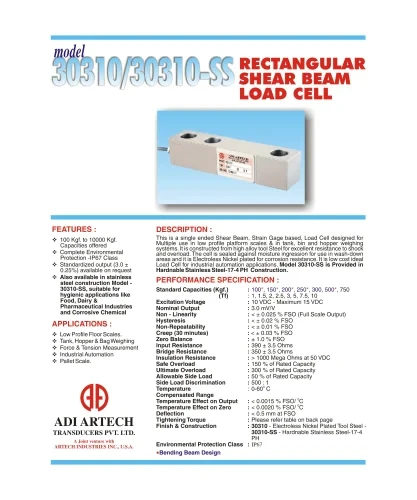

| Model | SINGLE ENDED SHEARBEAM LOADCELL |
| Temperature Effect on Zero | < 0.0020% FSO/ 0C |
| Temperature Effect on Output | < 0.0015% FSO/ 0C |
| Maximum Safe Overload | 150% FS |
| Ultimate Safe Overload | 250% FS |
| Recommended Excitation Voltage | 5 to 15V DC |
| Insulation resistance at 50V DC | >= 1000 M Ohm |
| Compensated Temperature Range | -10 to +40 Deg C |
| Operating Temperatue Range | -20 to +70 Deg C |
| Model | : | 30310 | |
| Capacity | : | 0-50Kgf to 0-10,000Kgf | |
| Load Direction | : | Tension & Compression - Universal | |
| Type | : | Low Profile Shear Beam Load Cell | |
| Industries |
| Application |
| Description | : | This is strain gage based load cell in bending beam/shear beam configuration. | It is designed for multiple cell configuration applications. | It is constructed from high alloy tool steel for excellent resitance to shocks and over loads. | This cell is sealed for moisture prooffing for use in wash-down areas. | Features | : | Also available in standardised output 3.00+/-0.25% upon request,for multiple cell applications like floor scale , tank and hopper weighing. | Electronic Instrumentation / Software | : | Compatible Electronic Systems are available optionally- | Stand alone digital display indicator. | Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface. | Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment. | Data acquisition system and software. |
