| Output Sensitivity(FS) | 2.0 +/- 0.002 mV/V |
| Model Number | 60810 |
| Zero balance | +/- 1% FS |
| Maximum Safe Overload | 150% FS |
| Recommended Excitation Voltage | 5 to 15V DC |
| Insulation resistance at 50V DC | >= 1000 M Ohm |
| Compensated Temperature Range | -10 to +40 Deg C |
| Operating Temperatue Range | -20 to +70 Deg C |
| Ultimate Overload Of Rated Capacity | 200% |
| HSN CODE | 90318000 |

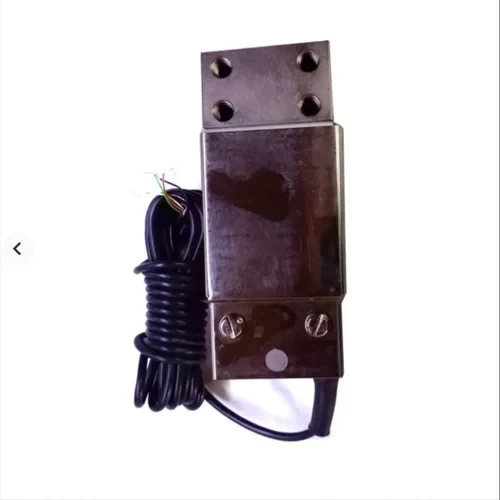

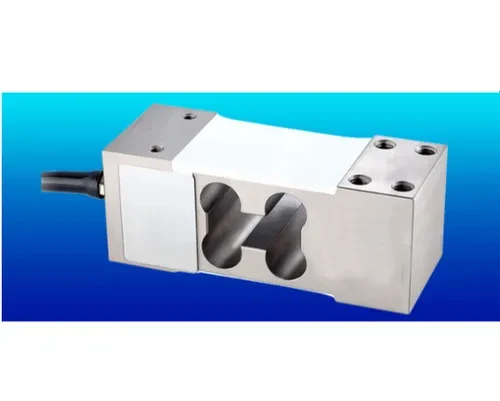

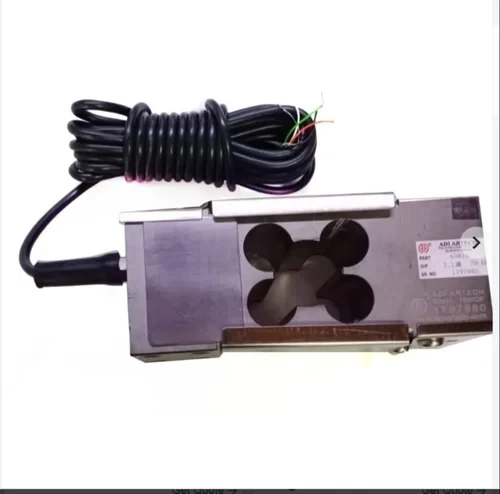

We are one of the leading manufacturer and supplier of ADI-60810 Load Cell. We obligated to meet the quality standards as per the customer demand.
| Model | : | 60810 | |
| Capacity | : | 0-300Kgf to 0-3000Kgf | |
| Load Direction | : | Tension & Compression - Universal | |
| Type | : | Single Point Off-Center Load Cell | |
| Industries |
| Application |

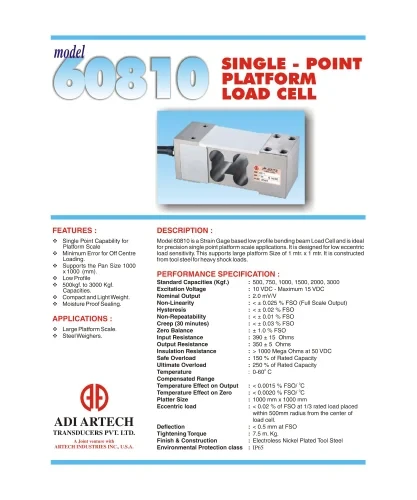

| Description | : | Model 60810 is a strain gage based low profile bending beam load cell and is ideal for precision large platform scale applications. It is designed for low eccentric sensitivity. Its tool steel construction is very rugged to withstand shock loads. This supports large platform size of 1 X 1 Mtr. It is constructed from tool steel for heavy shock loads. | Features | : | Single point capability for platform scales. Minimum error for off center loading. Supports the pan size of 1000 X 1000 mm. Low profile. 500Kgf. To 3000Kgf. Capacities offered. Moisture proof sealing. | Electronic Instrumentation / Software | : | Compatible Instruments with Relay output, 4-20 mA or 0-2 Volt Output Digital Version with RS-485 interface / USB output Blue Tooth Telemetry / Wireless Telemetry Software for Graphic, Tabulation, Reporting and Analysis |
NO WARRENTY / GURRENTY / RETURN / REPLACEMENT IN LOADCELL
