| Type | Double Ended Shear Beam |
| Material | Nickel Alloy Steel |
| Ingress Protection | IP68 |
| Application | Hopper Scales |
| Model | 70310 |
| Capacity | 30 Ton |
| Features | Triple Sealing |
| Output Sensitivity(FS) | 3.0 +/- 0.003 mV/V |
| Creep Error (30 minutes) | +/-0.03% FS |
| Temperature Effect on Zero | +/-0.002% FS |
| Temperature Effect on Output | +/-0.0015% FS |
| Zero balance | +/- 1% FS |
| Maximum Safe Overload | 150% FS |
| Ultimate Safe Overload | 300% FS |
| Recommended Excitation Voltage | 10 to 12V DC |
| Maximum Excitation Voltage | 15V DC |
| Input Resistance | 770+/-20 Ohms |
| Output Resistance | 700+/-7 Ohms |
| Insulation resistance at 50V DC | >= 1000 M Ohm |
| HSN CODE | 90318000 |

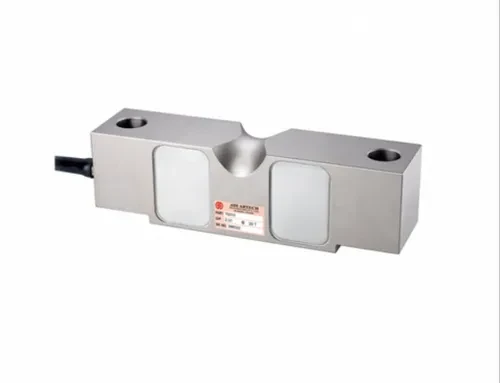

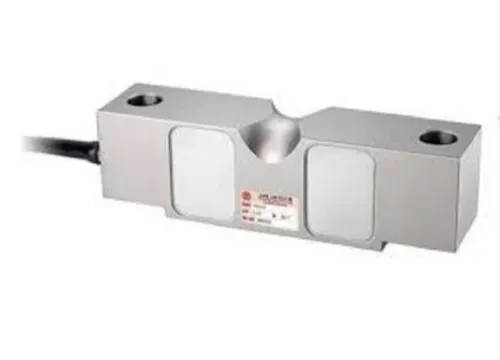

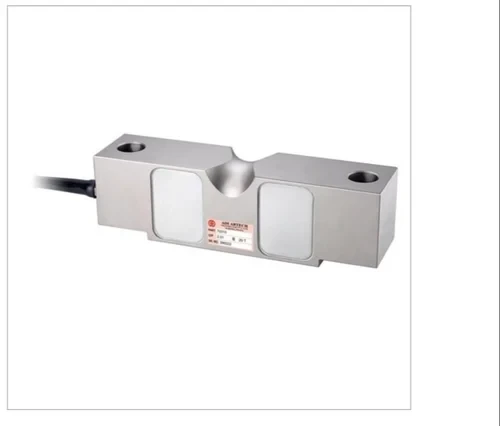

Double Ended Shear Beam Load Cell
ADI- 70310 Double Ended Shear Beam Load Cells.
| Model | : | 70310 | |
| Capacity | : | 0-5Tf to 0-100Tf | |
| Load Direction | : | Compression only | |
| Type | : | Double Ended Shear Beam Load Cell , Truck Scale Load Cell , Weigh Bridge Load Cell | |
| Industries |
| Application |
| Description | : | 70310 is double ended shear beam load cell. | This suits to truck,track,tank and hopper weighing. | This cell is designed to withstand rigorous shock loads privailing in heavy duty weighments. | Features | : | It is fully sealed for water proofing for IP-68 degree of protection class. | This load cell can be supplied with suitable mounting module WM-V,upon request. | Apart from weighing,this also finds applications in tensile testing. |
